Zero-Code Automated Label Printing Solution with Multi-Dimensional Tables

(Compatible with WPS, DingTalk, Feishu, etc.)

Cloud printing integrated with automation workflow multiplies office efficiency

Still Manually Printing Barcode Labels? Embrace Automation!

With the popularity of zero-code multi-dimensional table tools like WPS Multi-Dimensional Tables, DingTalk Smart Sheets, and Feishu Multi-Dimensional Tables, their powerful automation capabilities are reshaping workflows. However, a critical pain point persists: the lack of professional barcode and label printing functionality!

Common Scenarios:

• Warehouse Logistics: Need instant generation of standard-compliant barcode labels for fast material handling?
• Medical Laboratories: Require high-definition medical labels that meet strict compliance standards?
• Manufacturing: Urgent need for automated product/asset labeling?

When professional, compliant label printing becomes essential, can you tolerate tedious manual data transfer between tables and label software?

PrintSpirit: The Professional Barcode Label Printing Solution You Need!

Its powerful cloud printing API is natively designed for seamless integration with WPS/DingTalk/Feishu multi-dimensional tables and other zero-code platforms.

Now, combining multi-dimensional tables' automation engine with PrintSpirit's printing capabilities, you will:

• Eliminate manual printing errors and inefficiencies
• Build zero-code automated label workflows with sub-second response from data input to label output
• Effortlessly handle specialized barcodes (GS-128, Datamatrix, PDF417, etc.) for medical, automotive parts and other demanding industries

This guide demonstrates integration with WPS Multi-Dimensional Tables and PrintSpirit, covering:

• How to build zero-code label systems
• Key steps for seamless data-to-label workflows
• Adaptations for DingTalk/Feishu users

Unlock efficient, precise label printing today!

---

1. Multi-Dimensional Tables: Next-Gen Zero-Code Data Management

Modernizing spreadsheets with database-like relational capabilities and visual interfaces, multi-dimensional tables empower non-technical users to build complex data systems.

Key Advantages:

• Multi-View Display: Switch between kanban, calendar, form views
• Automation Engine: Preconfigure triggers (e.g., new records) to auto-execute actions
• Relational Data Links: Cross-table associations avoid redundancy
• Granular Permissions: Detailed access controls

These tables excel as central data hubs but lack professional printing capabilities. Enter PrintSpirit.

---

2. PrintSpirit: Professional Label Design & Printing

PrintSpirit (www.printspirit.cn) offers intuitive drag-and-drop label design with true WYSIWYG editing. It supports all major barcode standards and printer types across platforms.

Key features for integration:

• Cloud Printing Service: Obtain a dedicated WEBHOOK API after registration
• IoT Architecture: Solve intranet penetration challenges for reliable remote printing
• Enterprise Integration: Seamless ERP/WMS connectivity

Integrate multi-dimensional tables' data handling with PrintSpirit's printing expertise for code-free label solutions. Our asset management case demonstrates this synergy.

3. Implementation Guide: Automated Asset Label System

1. Preparations

1. Install PrintSpirit (Web/Central/Desktop versions all supported)
2. Register account (Free, required for cloud printing)
3. Design a label template and note its ID
   Example asset label: ID=b2f1c6de-c9fc-4766-b638-c1b39ff076a5

4. Activate WPS 360 (Free multi-dimensional tables)

2. Activate Cloud Printing

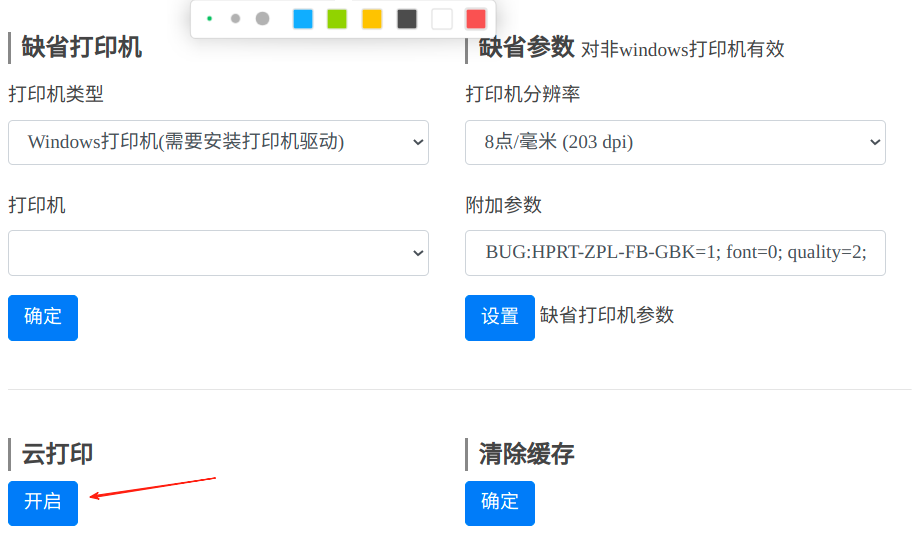

Access PrintSpirit's settings at http://127.0.0.1:9011 (Desktop/Central edition) and activate cloud printing. Log in to obtain your unique cloud printing ID. This ID displays only once - save it securely!

Test with cURL:

1curl -X POST -H "Content-Type: application/json" -d '{"var1":"value1"}'\
2 'https://www.printspirit.cn/cloud/print/PrWXmkWZ4VZ4tDQx3yVWcH?tpid=140630e1-0eb4-4910-8c5a-c7118bcec343&printer=Spirit+Image'

URL Format:

https://www.printspirit.cn/cloud/print/{Cloud_ID}?tpid={Template_ID}&printer={Printer_Name}

• Use URL encoding for printer names containing spaces
• Clear cache via PrintSpirit console after parameter changes
• Reference Printer Parameters

3. Create Asset Management Table

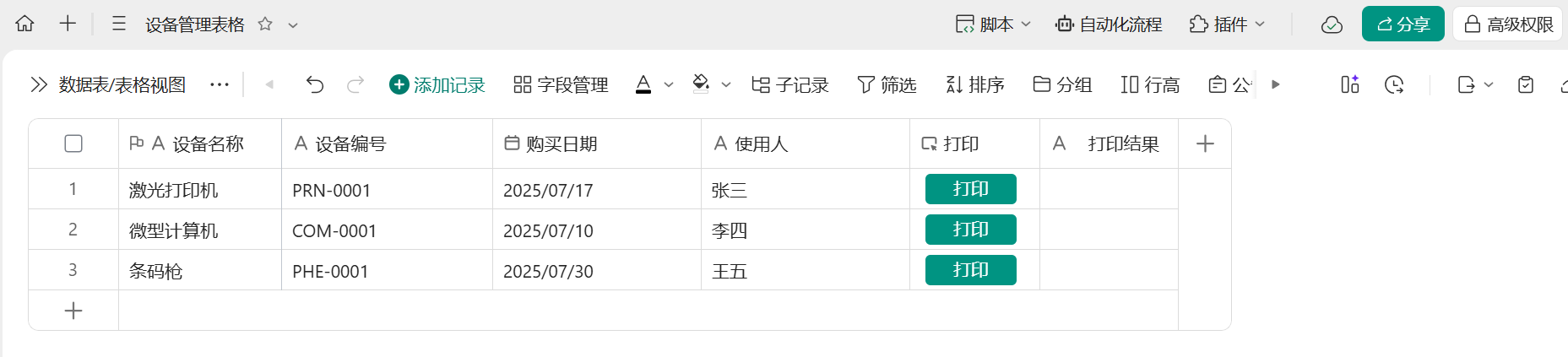

Build a WPS multi-dimensional table with fields matching label variables: Device Name, Device ID, User, Purchase Date. Add print trigger button and status fields:

4. Configure Automation Workflow

Implement button-triggered automation with error handling:

1. Trigger: Button click
2. Condition: Check "Print Status" is empty

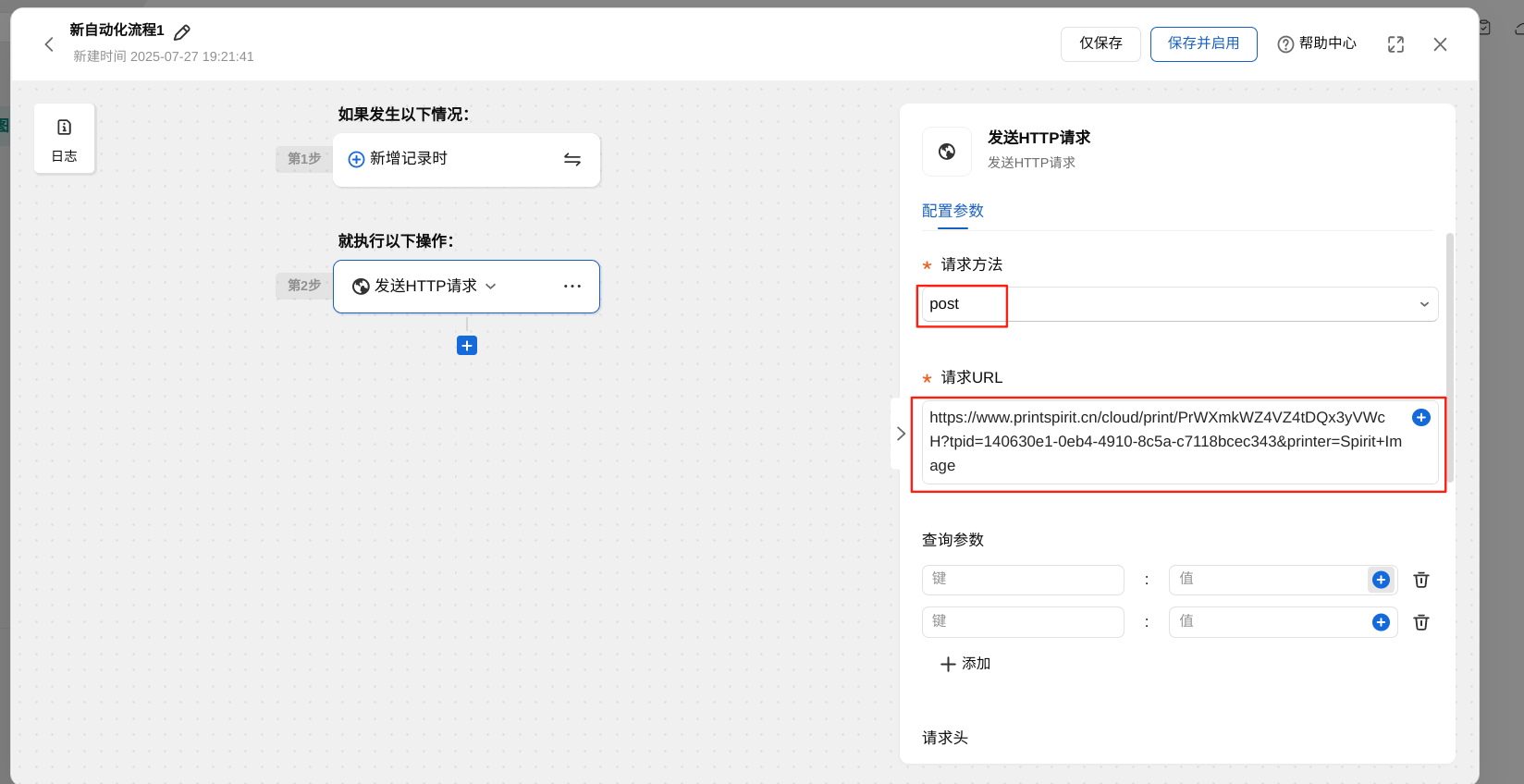

3. HTTP Request:
   • Method: POST
   • URL: Your cloud print URL
   • Body: {"device":"{DeviceName}","id":"{DeviceID}","user":"{UserName}","date":"{PurchaseDate}"}

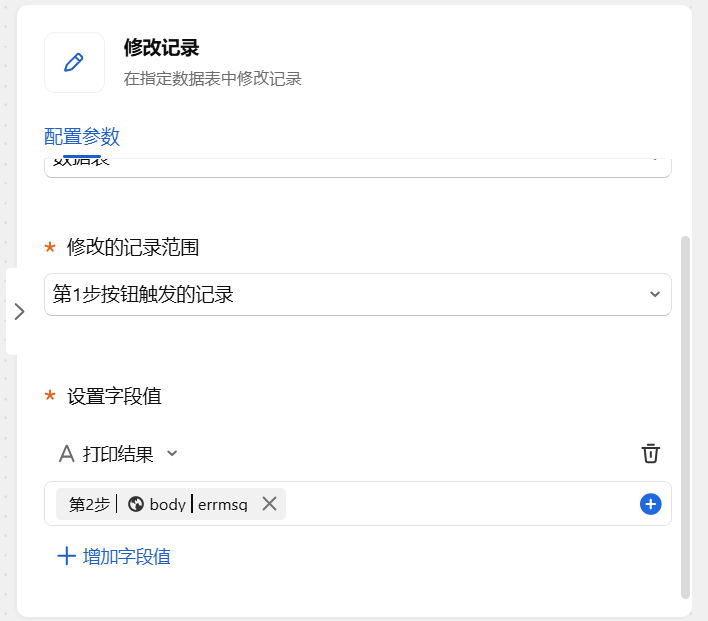

4. Status Update (Optional): Write {{response.rc}} - {{response.errmsg}} to status field


---

4. Scenario Extensions

Scenario	Implementation	Platforms
Approval-Triggered Printing	Post-approval automation	All
Mobile QR Code Printing	Scan-to-print workflows	WeChat/DingTalk
Mixed Template Printing	Conditional template selection	Universal

---

Conclusion: Redefining Digital Office Workflows

The WPS/DingTalk/Feishu & PrintSpirit integration creates enterprise-grade label solutions without coding. It bridges the critical "data-to-physical" gap through:

• Democratized Automation: Office staff can build IT-grade systems
• Future-Proof Architecture: Scalable for evolving automation needs
• Industrial Compliance: Meets medical/logistics printing standards

Production Tips:

1. Implement HTTP retry mechanisms in automation rules
2. Use PrintSpirit's virtual printer for validation before physical printing
3. Monitor print queues via PrintSpirit dashboard

Start your 30-day free trial at printspirit.cn/download and transform your label workflows today!
